PenetroLOG Digital Soil Compaction Meter
With this new penetrologger by Falker you will get a state of the art meter that measures compaction including GPS data and with Bluetooth functyionality for use with a free App and Webapplication software. Simple in use but with great functionality.
The benefits of this meter
Practical Design
A robust and modern meter with protected connectors.
Graphic Display
Op het display wordt de meetwaarde snel weergegeven en is gemakkelijk af te lezen.
Ultrasonic Sealing
Improved protection against dust
GPS
The internal GPS allows to make use of GEO-referenced measurement results. These results can be accessed at your smartphone or PC for further analysis and reports.
Bluetooth
Via the Bluettooth capability connection with your smartphone and also personal computer is easily done for further data analysis by using the free App and Web Application
Falker Compact .
USB
Data can be logged and transfered via the a USB port also present on the meter.
Falker Compact

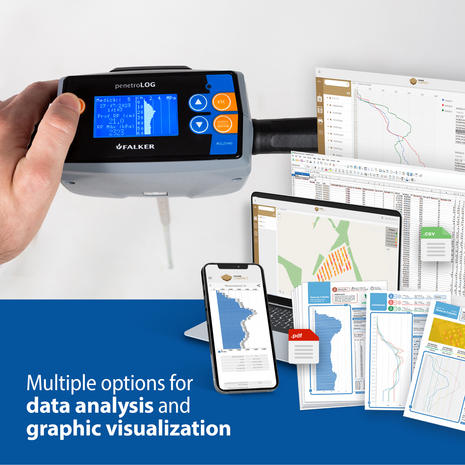

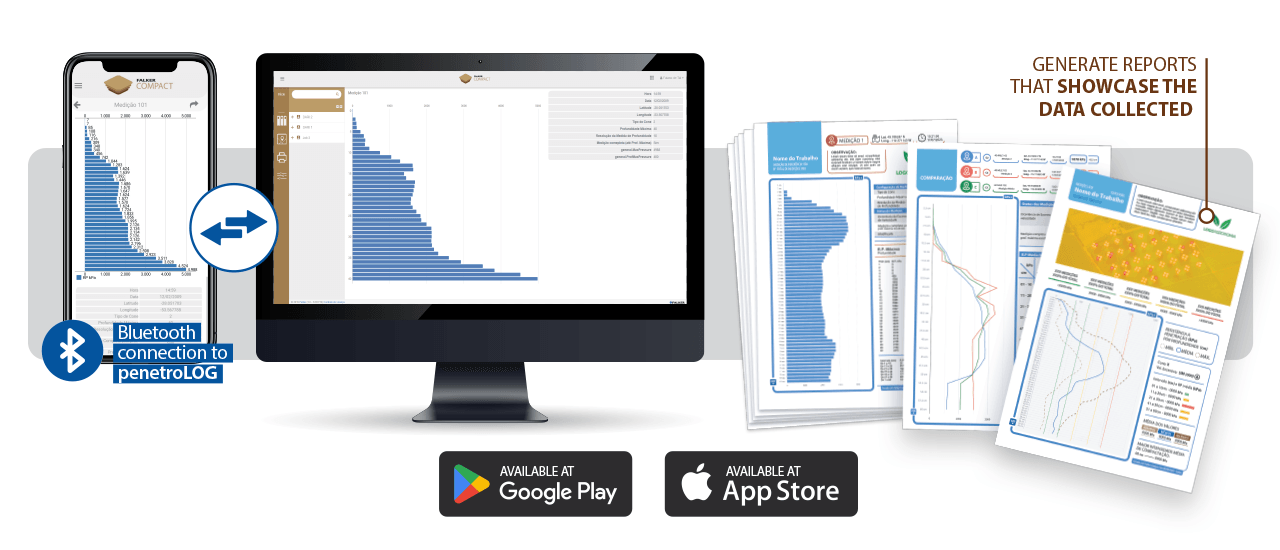

You will have the possibility to use the free App and Web Application Falker Compact. Simply download the App on Apple's App Store or Google Play Store. get Zeer handig is dd mogelijkheid om de meter te koppelen met de gratis App en Webapplicatie, zodat u te allen tijde de meetwaarden van de meter kunt inzien en verder analyseren. De app en webapplicatie
Falker Compact synchoniseert met elkaar, zodat de data met elkaar overeenkomen. Ook kunt u deze gebruiken voor rapportages of presentaties.

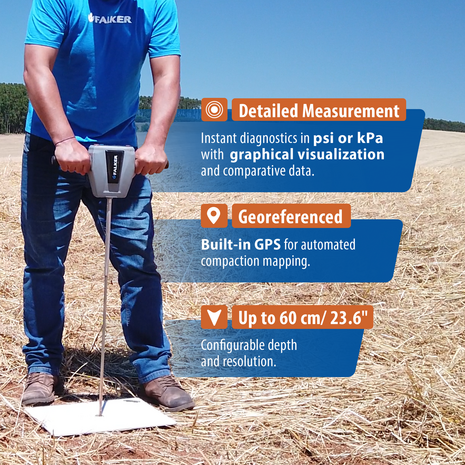

Watch the video for an impession of the use of the meter in the field.
VIDEO
Cone Type
The meter comes with a
Cone type 2 for general use. You can also choose the extended set with Cone 1 and 3 also part of the set.
For this meter there is a delivery time of 1 week after ordering at the moment. Please contact us for more information.
penetroLOG
Maximum Penetration Depth Cone 1 and 2 : 60 cm
Cone 3 : 40 cm
Maximum Cone Index Cone 1 : 3100kPa
Cone 2 : 7700 kPa
Cone 3 : 15100 kPa
Depth Measurement Resolution 1 or 2,5 cm, configurable
Cone Index Measurement Resolution Cone 1 : 3,1 kPa
Cone 2 : 7,7 kPa
Cone 3 : 20,1 kPa
Maximum Penetration Speed 5 cm/s
Cone Diameter Cone 1 : 20,27 mm
Cone 2 : 12,83 mm
Cone 3 : 7,94 mm
Maximum Supported Force on Rod Cone 1 and 2 : 100 kgf
Cone 3 : 75 kgf
Memory 3000 measurements
Power Internal rechargeable battery
Display Graphic LCD with backlight and sound
GPS Integrated
Communication / Data Transfer USB and Bluetooth

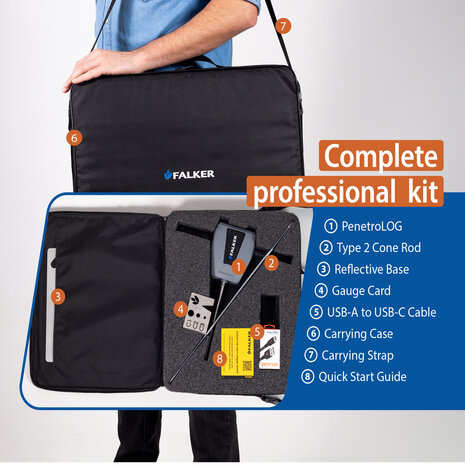

Included

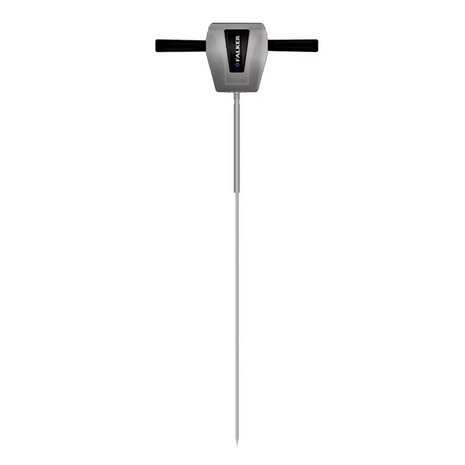

Electronic Penetrologger Rod with replaceable Cone number 2 (Standard Set) Rod with replaceable Cone number 1, 2 and 3 (Extended Set) Reflective Base Gauging Template USB cable Free App and Web Application
