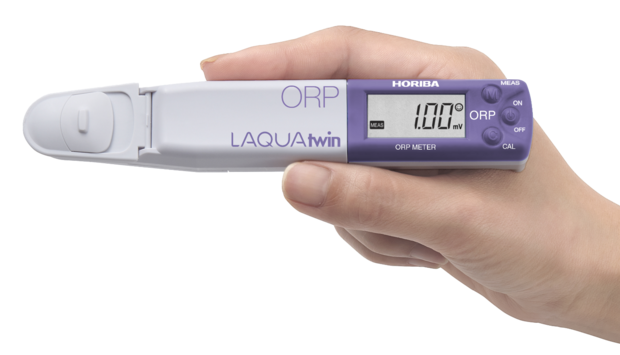

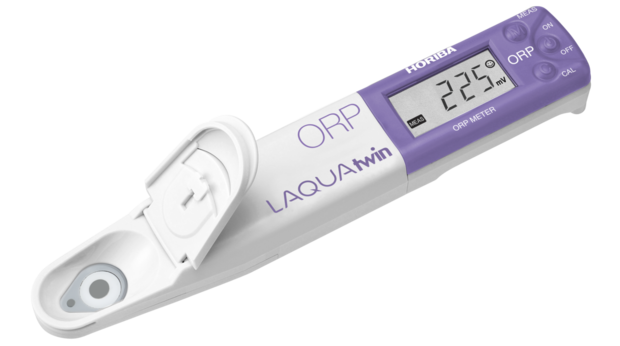

Horiba LAQUAtwin ORP-11 Oxidation Reduction Potential Meter
A very handy meter for quick measurement of the quality of our water samples. The meter gives fast and accurate readings of the ORP value of your swimming pool water, pond water and open water omang the many water samples
Some characteristics:
- Measures not only ORP value, but also Eh value (voltage reading vs. the Standard Hydrogen Electrode or SHE)
- Measures samples as small as 0,3 ml (or 0,05 ml with a sampling sheet B)
- 1 point calibration
- Accurate
- Temperature compensation

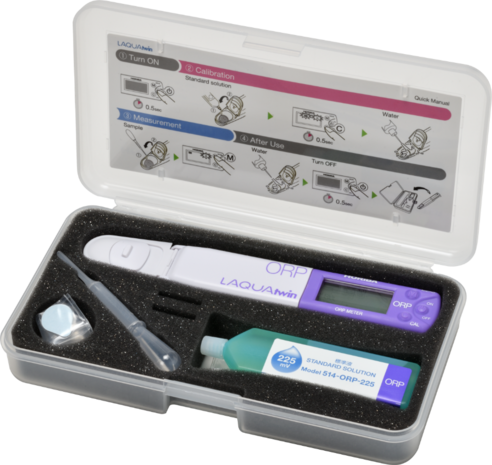

With the meter the following parts are supplied: 225mV ORP standard solution (14 ml), abrasive cotton swab for the platinum disk in the sensork, dropper,5 sampling sheets, and batteries.
Specifications
| |
Model |
LAQUAtwin ORP-11 |
|
| |
Measurement Principle
|
ORP Electrode
|
|
| |
Minimum Sample Value
|
0.3ml (0.05 ml met sampling sheet B)
|
|
| |
Range
|
-1000 to 1000 mV |
|
| |
Resolution
|
1 mV |
|
| |
Accuracy
|
± 2 mV
|
|
| |
Calibration Points
|
1
|
|
| |
Temperature Display / Resolution
|
0 to 50.0 ºC / 0,1 °C
|
|
| |
Display
|
Custom (monochrome) digital LCD with backlight
|
|
| |
Operating Temperature
|
5 to 40.0 ºC
|
|
| |
Operating Humidity
|
85% or less relative humidity (no condensation)
|
|
| |
Batteries
|
CR2032 batteries (2)
|
|
| |
Battery Life
|
Ca. 400 hours with continuous use and no backlight
|
|
| |
Material
|
ABS epoxy
|
|
| |
Dimensies
|
164 x 29 x 20 mm
|
|
| |
Weight
|
ca.. 55 g (including sensor and batteries)
|
|
| |
Functies
|
- ORP / Eh Measurements
- Auto Standard Recognition
- Changeable High and Low Calibration Values
- Multiplication Compensation
- Temperature Calibration
- Auto Hold / Auto Stable Measurement
- Switchable Backlight
- Automatic Power Off (30mins)
- Low Battery Indicator
- IP67 Dust / Waterproof
- Replaceable Sensor
|
|
