Imacimus 5 Multi Ion Meter
The same technology as the Imacimus 10 enables you to measure up to 4 different ions and pH parameters with one single measurement. Plant nutrients in plant sap or water is measured efficiently and accurately. Only one single measurement is sufficient for getting results. The meter has 5 channels for 4 ion electrodes and 1 pH / reference electrode.
This 5 meter set does not come with mini ISE electrodes, calibration and conditioning splutions.
You can choose the ions of your choice by selecting and purchasing the specific electrodes separately.

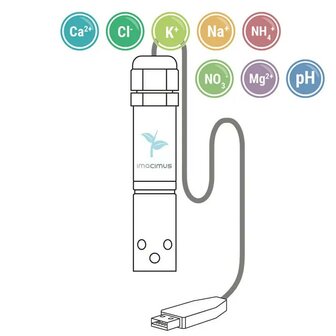

You can connect one of the following electrodes for measuring:
- Potassium
- Nitrate
- Calcium
- Sodium
- Chloride
- Magnesium
- Ammonium

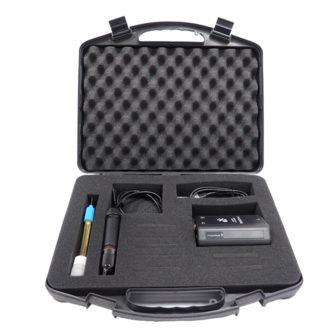

Each Imacimus 5 comes with the following content:

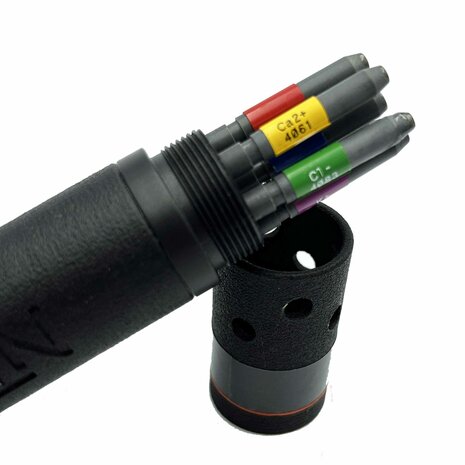

- Mullti ION PROBE without electrodes
- Multi Channel IC5 METER (5 channels; 4 ion and 1 pH)
- USB cable (data / power)
- Reference electrode pH.
- pH Buffers 4 & 7 (50mL)

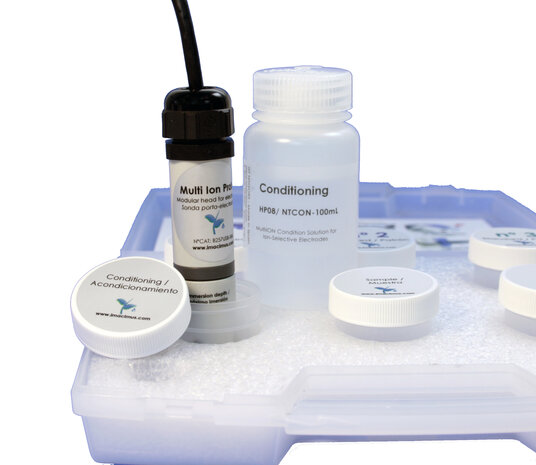

- Calibration Case (without reagents)
- Demineralized Water (50 mL)

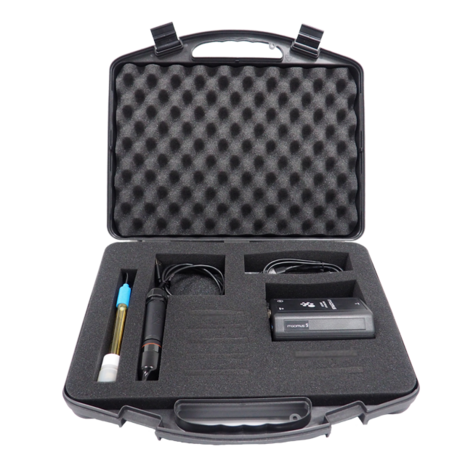

- Carrying Case
- Software imacimus® for Windows (free download)
Order the following required items separately:
Click on the product with the link to get to the specifc product item.

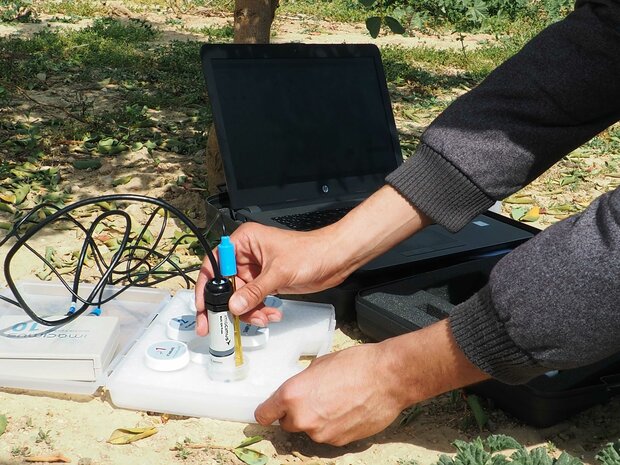

Measuring wherever you want

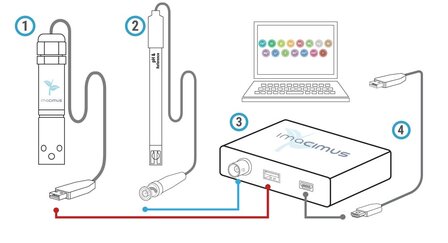

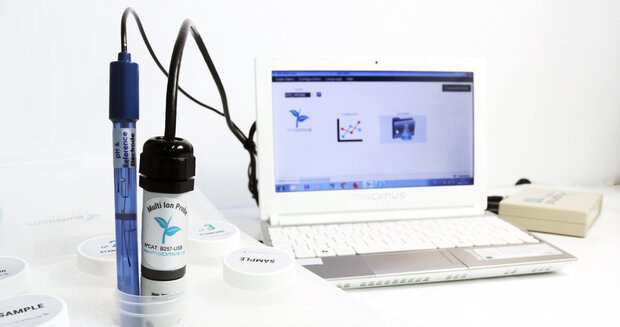

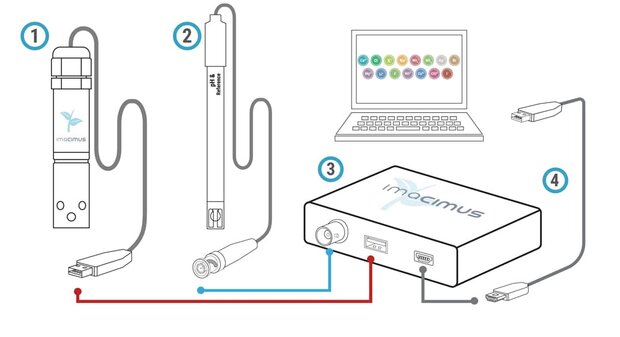

Either in the field, lab or office, the meter enables you to sample and make measurements wherever you are. You just have to connect the meter to a laptop or PC and take samples and start measuring. Within a minute you will get the readings of all the parameters of your choice.The meter is handy and compact and is powered by the usb connection.
Software and Set Up
For configuring the meter and reading measurements on your laptop or PC, you will need Imacimus software. This software is free to download after you have purchased a meter. With the serial number you can receive the free dowloand by clicking on the following link.
Requesting Imacimus Software
Please take a look at this video for setting things up.
Delivery Time
We will purchase these meters from the manufacturer direcly after your order in order to warrant fresh electrodes and solutions. This means the meter comes with a delivery time of about a week.
Specifications
| |
Imacimus 5 |
|
| |
Meter |
|
|
| |
|
Channels |
5 (4 Ions and 1 pH) |
|
| |
|
General Range |
1 to > 10.000 mg/L |
|
| |
|
Minimum Sample |
10 ml |
|
| |
|
Units |
mmol/L of mg/L – ppm
pH, direct mV |
|
| |
|
Data Transfer and Power |
USB-C, 5V via USB port |
|
| |
Multi Ion Probe
Electrodes (maximum 4) |
Linear Range |
pH Range |
Accuracy |
Repeatibility |
|
| |
|
Kalium/Potassium |
|
1 to 9 |
+/- 4% |
+/- 10% |
|
| |
|
Natrium/Sodium |
|
1 to 9 |
+/- 4% |
+/- 10% |
|
| |
|
Nitrate |
|
2 to 11 |
+/- 4% |
+/- 10% |
|
| |
|
Calcium |
|
3,4 to 8 |
+/- 8% |
+/- 20% |
|
| |
|
Chloride |
|
2 to 12 |
+/- 4% |
+/- 10% |
|
| |
|
Magnesium |
|
3 to 8,5 |
+/- 8% |
+/- 20% |
|
| |
|
Ammonium |
|
4 to 8,5 |
+/- 4% |
+/- 10% |
|
| |
|
|
|
|
|
|
